Product Introduction

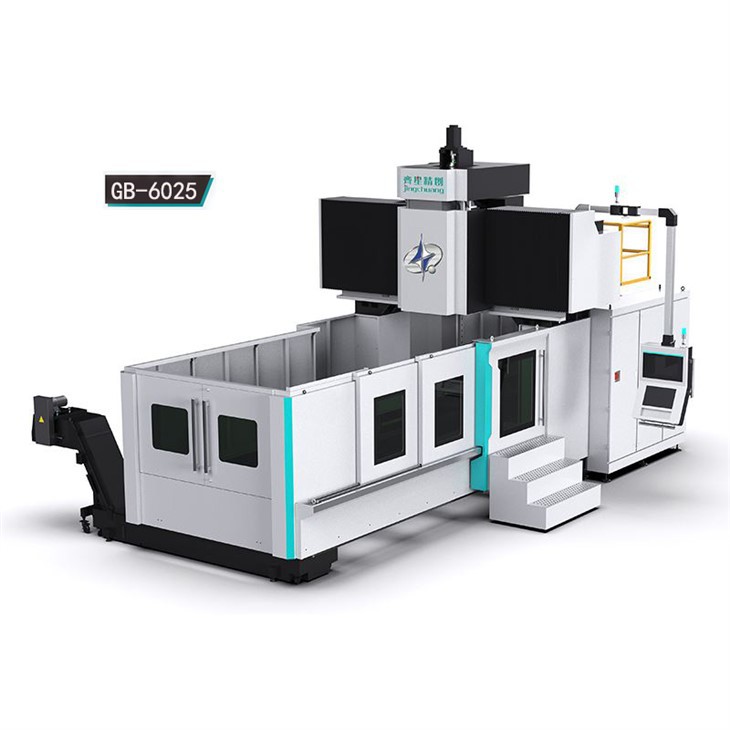

The Flex CNC gantry mill is a high-performance automated machining equipment suitable for machining large parts, mold making, and high-precision cutting.
Product Features

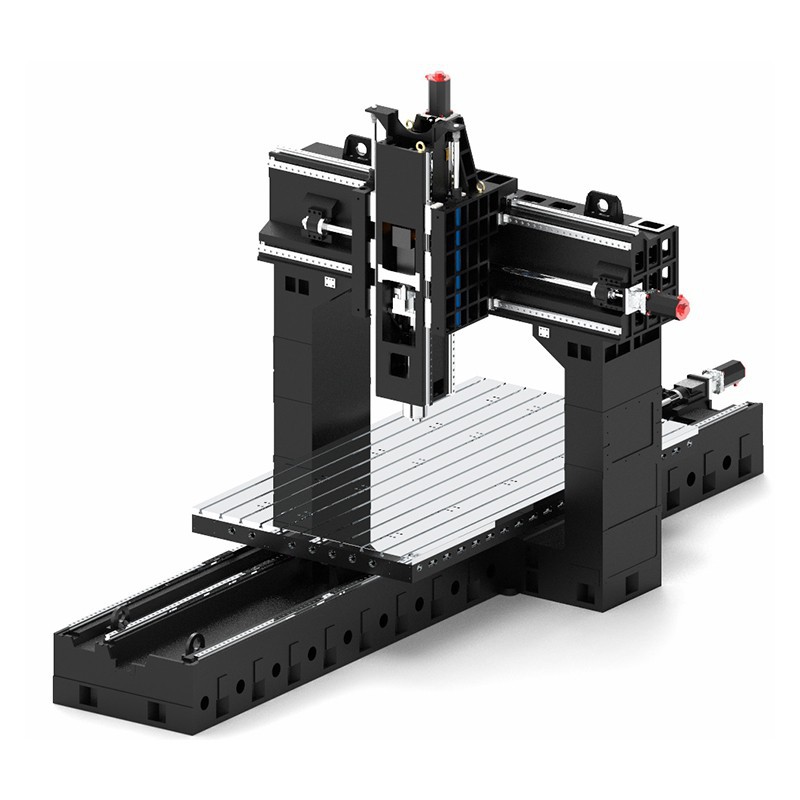

Structural Strength: The Flex CNC Gantry Mill bed is made of high-strength cast iron with double-column support, capable of bearing 22 tons, ensuring stable and reliable long-term machining.
Precision Guideways: The machine tool features hardened roller guideways on its X/Y/Z axes, with a positioning accuracy of ±0.013mm and a repeatability of ±0.003mm, ensuring stable machining accuracy.
High-Efficiency Spindle: The machine tool's spindle power reaches a maximum of 37kW, with a speed of up to 4500rpm, enabling high-speed cutting of large parts.
Customizable: The machine tool supports customization of colors, markings, and accessories, facilitating workshop layout and production line integration.
Technical specification
|
Machine type( flex cnc gantry mill) |
unit |
GB-6025 |
|
|
Workbench |
|||
|
Table area |
mm |
6000*1800 |
|
|
T-Slot(size*quantity*spacing) |
mm |
10*22*200 |
|
|
Maximum load of workbench |
kg |
22000 |
|
|
Journey |
|||
|
X-axis travel |
mm |
6100 |
|
|
Y-axis travel |
mm |
2000 |
|
|
Z-axis travel |
Four-wire roller track T-ram square ram(hard rail) |
800/1000/1200/1500 |
|
|
Distance from spindle nose to table( gear type) |
Z-axis travel=800 |
mm |
250-1050 |
|
Z-axis travel=1000 |
mm |
250-1250 |
|
|
Z-axis travel=1200 |
mm |
250-1450 |
|
|
Z-axis travel=1500 square ram(hard rail) |
mm |
250-1750 |
|
|
Double column spacing( door width) |
mm |
2500 |
|
|
Principal axis |
|||
|
Spindle power(Continious/30min rating) |
Kw |
18.5/22 22/26 30/37 |
|
|
Spindle speed(wire rail spindle head) |
two stage gear type |
rpm |
4500 |
|
Spindle taper hole |
- |
BT-50/BBT-50/CAT-50 |
|
|
Feed |
|||
|
Cutting feed rate |
mm/min |
1-12000 |
|
|
Fast feed rate |
m/min |
X/Y/ Z: 20/20/15or 15/20/15 |
|
|
X/Y/Z feed motor |
Power(Kw) |
Kw |
X/Y/Z: 7/7/7 or 9/7/7 |
|
Precision |
|||
|
Positioning accuracy |
Refer to ISO230-2 |
mm |
±0.013/ Full stroke |
|
Reproduction accuracy |
Refer to ISO230-2 |
mm |
±0.003 |
|
Automatic tool change |
|||
|
Tool storage capacity |
Vertical tool changing |
pcs |
40T/60T/90T |
|
Maximum tool weight |
kg |
20 |
|
|
Automatic tool change tool size(full tool/empty tool) |
mm |
∅125/∅250 |
|
|
Shank type |
- |
BT-50/BBT-50/CAT-50 |
|
|
Other |
|||
|
Electricity demand |
kva |
70 |
|
|
Barometric demand |
kg/cm² |
8 |
|
|
Machine weight |
kg |
56000 |
|
|
Floor area(L*W*H) |
mm |
14800*6000*5200 |
|
Why We Are the Leading Manufacturer of GB-6025 Flex CNC Gantry Mill
Wide Product Range
The company offers a diverse range of machining centers, including vertical, gantry, and 5-axis models, to meet various processing needs.
Extensive Industry Applications
The company's products are applicable to multiple industries, including automotive, aerospace, electronics, medical, energy, and heavy industry.
Comprehensive After-Sales Service
The company provides installation guidance, operation training, and maintenance services, ensuring worry-free use for customers.
Authoritative International Certifications
The company has obtained ISO9001, ISO14001, and ISO45001 certifications, ensuring product quality and safety.
Frequently Asked Questions
Q: What is the working principle?
A: The Flex CNC gantry mill uses a CNC system to control the precise movement of the cutting tool along the X, Y, and Z axes, achieving automated, high-precision machining of workpieces.
Q: What materials can it machine?
A: It can machine steel, aluminum alloys, stainless steel, copper alloys, and composite materials.
Q: How do I clean the machine tool?
A: Wipe the machine tool surface with industrial cleaner and keep the guide rails lubricated.
Q: Is installation difficult?
A: Manufacturer installation guidance is provided; a level foundation can be prepared, and overall installation can be completed within 2-3 days.
Q: What machining types does it support?
A: It supports various machining methods such as milling, drilling, tapping, and engraving.
