Product characters

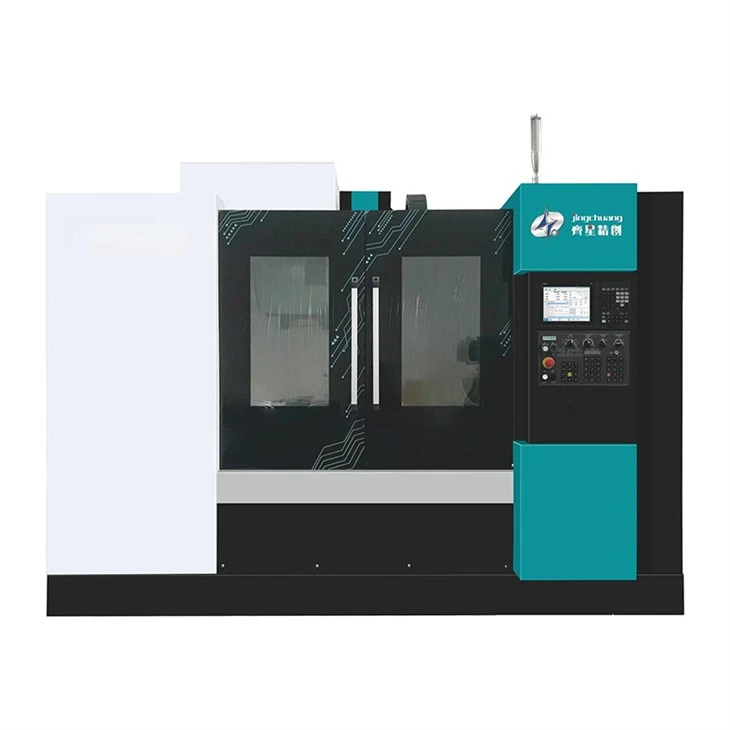

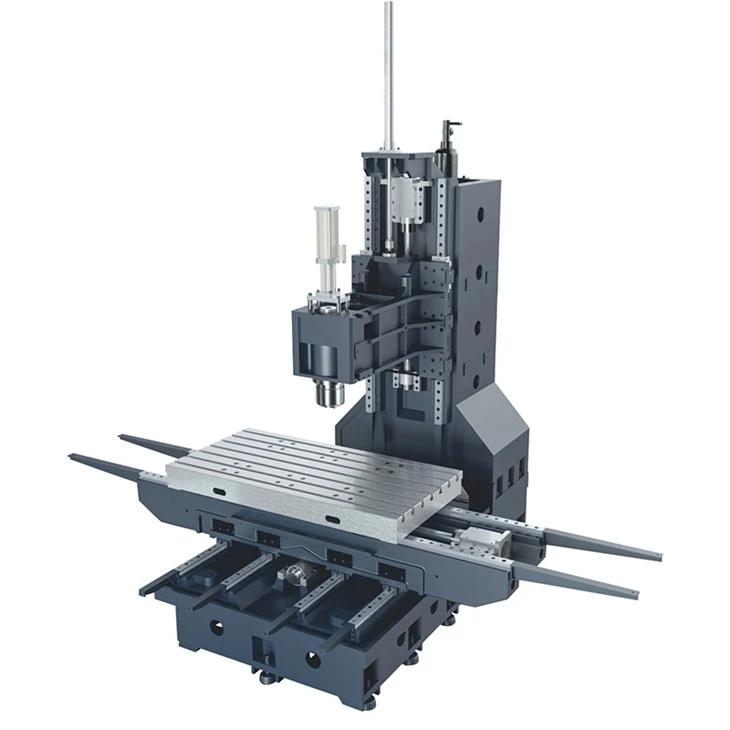

1.The MB series of high-speed vertical machining centers features a sleek sheet metal design, reflecting the stability and superior configuration of Qixing Jingchuang's advanced equipment. These machining centers are characterized by high rigidity, precision, and speed, providing cost-effective solutions designed for customer needs.
2.Our this 3 axis vertical machining center is extensively utilized in various sectors including large diesel machinery, agricultural machinery, chemical machinery, new energy, rail transit, automotive, mining machinery, steam turbines, textiles, aerospace, military, shipbuilding, electric power, and the nuclear industry.
3.Efficient chip removal solutions: The sheet metal design of the outer cover has the appropriate inclination, which can quickly remove the cutting chips, reduce the cutting chip residue, and the programmable chip punching device automatically (M code and timer) to clean up a large amount of chip accumulation, saving the user's maintenance time.
Technical specification
|
Machine type( 3 axis vertical machining center) |
unit |
MB-1160 |
|
|
Journey |
|||
|
X-axis travel |
mm |
1100 |
|
|
Y-axis travel |
mm |
600 |
|
|
Z-axis travel |
mm |
600 |
|
|
Distance from spindle nose to table |
mm |
120-720 |
|
|
Distance from spindle center to column |
mm |
650 |
|
|
Workbench |
|||
|
Table area |
mm |
1200*600 |
|
|
T-Slot(quantity*size*spacing) |
mm |
18*5*100 |
|
|
Maximum load of workbench |
kg |
800 |
|
|
Principal axis |
|||
|
Spindle power(Continious/30min rating) |
Kw |
7.5/11 |
|
|
Spindle speed |
Belt type(standard) |
rpm |
8000/10000 |
|
Straight-junction type(opt) |
rpm |
10000/12000 |
|
|
Spindle output torque |
nm |
35.8/ 70 |
|
|
Spindle taper hole |
- |
BT40-∅150 |
|
|
Feed |
|||
|
Cutting feed rate |
mm/min |
1-12000 |
|
|
Fast feed rate |
m/min |
X:24 Y: 24 Z:24 |
|
|
X/Y/Z feed motor |
Power(Kw) |
Kw |
X:3 Y:3 Z:3 |
|
Precision |
|||
|
Positioning accuracy |
Refer to JIS B6333 |
mm |
±0.004/300, ±0.008/ Full stroke |
|
Reproduction accuracy |
Refer to JIS B6333 |
mm |
±0.0028 |
|
Automatic tool change |
|||
|
Tool storage capacity |
Vertical tool changing |
pcs |
24/32(opt) |
|
Maximum tool weight |
kg |
8 |
|
|
Automatic tool change tool size(full tool/empty tool) |
mm |
∅80/∅150 |
|
|
Shank type |
- |
BT-40/BBT-40 |
|
|
Other |
|||
|
Electricity demand |
kva |
25 |
|
|
Barometric demand |
kg/cm² |
6 |
|
|
Machine weight |
kg |
5400 |
|
|
Floor area(L*W*H) |
mm |
3750*2650*2988 |
|
