Company brief introduction
It is a high-tech intelligent professional tool machine manufacturer invested by Hubei Qixing Group.
Qixing Jingchuang Intelligent Equipment Co., Ltd. is a research and
development, production, sales and service as one of the high-precision intelligent CNC tool machine company, the company has a dedicated to the field of machine tool manufacturing in Taiwan professional technical team, Supplemented by the most advanced process and scientific management production vertical machining center, high-speed machining center machine, gantry machining center machine, horizontal (boring) type machining center machine, crane five-axis machining center machine, cradle five-axis machining center machine, moving column five-axis machining centermachine, etc., to provide customers with a full range of production tools. And according to the needs of customers' workpiece drawings, help customers with product selection, process plan analysis, sample cutting and other services.
We have many service outlets in many cities and a perfect after-sales service system, which ensure we could provide our all customers with immediate service, comprehensive technical support and a/s service.
Product characters

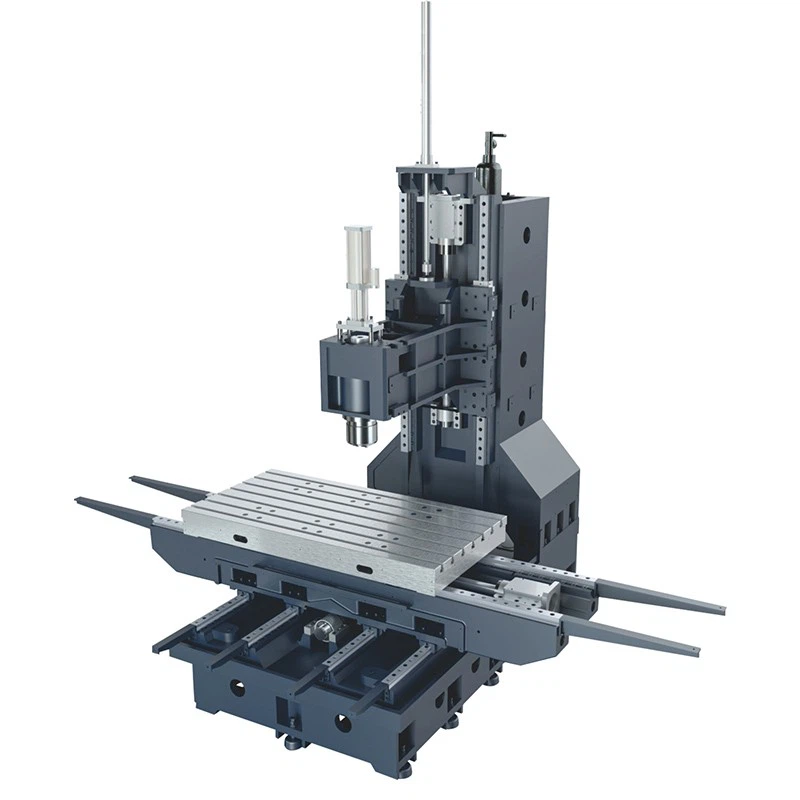

1.The X/Y/Z axes of cnc vertical milling center use imported linear roller guides, offering high rigidity, low noise, and low friction, which allows for rapid movement and optimal circular accuracy, making them ideal for high-speed, high-precision machining applications.
2.The three-axis transmission device employs direct force technology, bettering effectivity and keeping accuracy stability.
Technical specification
|
Machine type( cnc vertical milling center) |
unit |
MB-1380 |
|
|
Journey |
|||
|
X-axis travel |
mm |
1300 |
|
|
Y-axis travel |
mm |
800 |
|
|
Z-axis travel |
mm |
700 |
|
|
Distance from spindle nose to table |
mm |
160-860(BT50-φ155) standard or 190-890(BT40-φ150) or 185-885(BT50-φ190) |
|
|
Distance from spindle center to column |
mm |
855 |
|
|

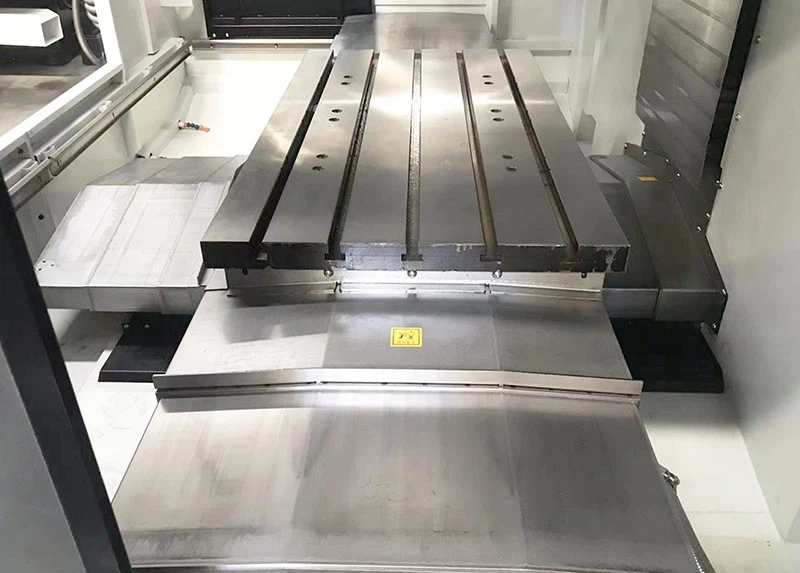

Workbench |
|||
|
Table area |
mm |
1400*800 |
|
|
T-Slot(quantity*size*spacing) |
mm |
18*7*110 |
|
|
Maximum load of workbench |
kg |
1300 |
|
|
Principal axis |
|||
|
Spindle power(Continious/30min rating) |
Kw |
15/18.5 |
|
|
Spindle speed |
Belt type(standard) |
rpm |
8000/10000 |
|
Straight-junction type(opt) |
rpm |
10000/12000 |
|
|
Spindle output torque |
nm |
71.6/118 |
|
|
Spindle taper hole |
- |
BT40-φ150 standard or BT40-φ150 or BT50-φ190 |
|
|
Feed |
|||
|
Cutting feed rate |
mm/min |
1-12000 |
|
|
Fast feed rate |
m/min |
X:20 Y:20 Z:20 |
|
|
X/Y/Z feed motor |
Power(Kw) |
Kw |
X:3 Y:3 Z:3 or X:4.5 Y:4.5 Z:4.5 |
|
Precision |
|||
|
Positioning accuracy |
Refer to JIS B6333 |
mm |
±0.004/300, ±0.008/ Full stroke |
|
Reproduction accuracy |
Refer to JIS B6333 |
mm |
±0.0028 |
|
Automatic tool change |
|||
|
Tool storage capacity |
Vertical tool changing |
pcs |
24/30(opt) standard or 24/32(opt) or 24/30(opt) |
|
Maximum tool weight |
kg |
15/20 standard or 8 or 15/20 |
|
|
Automatic tool change tool size(full tool/empty tool) |
mm |
φ110/ φ200(φ250) standard or φ80/ φ150 or φ110/ φ200(φ250) |
|
|
Shank type |
- |
BT-50/BT-40/ BT50 |
|
|
Other |
|||
|
Electricity demand |
kva |
40 |
|
|
Barometric demand |
kg/cm² |
6 |
|
|
Machine weight |
kg |
9400 |
|
|
Floor area(L*W*H) |
mm |
4200*2800*3200 |
|
Warranty service
1. Warranty period of the mechanical part is one year from the date of acceptance.
2.The warranty period of the controller is two years from the date of acceptance.
3.After the acceptance of the equipment, during the warranty period, the failure caused by the quality of the equipment shall be carried out by the seller free of charge. However, the Buyer shall be responsible for the failure or part damage caused by the Buyer's human causes, and the seller shall not be responsible for free repair or replacement of parts.
4.By our company to send engineers to the customer factory for mechanical installation and commissioning and education training.
About Hubei Qixing
Hubei Qixing Group is a state-owned large-scale enterprise group, founded in 1980. We're a science, industry and trade integration and national high and new technology enterprise group, which mainly produce truck cabin, EV truck, SKD/CKD truck, caravan, intelligent CNC machine tools and so on. We have three major industrial parks, totally 21 subsidiarie, more than 3000 employees, it covers an area of 500acre and the total assets is more than 10billion CNY.
