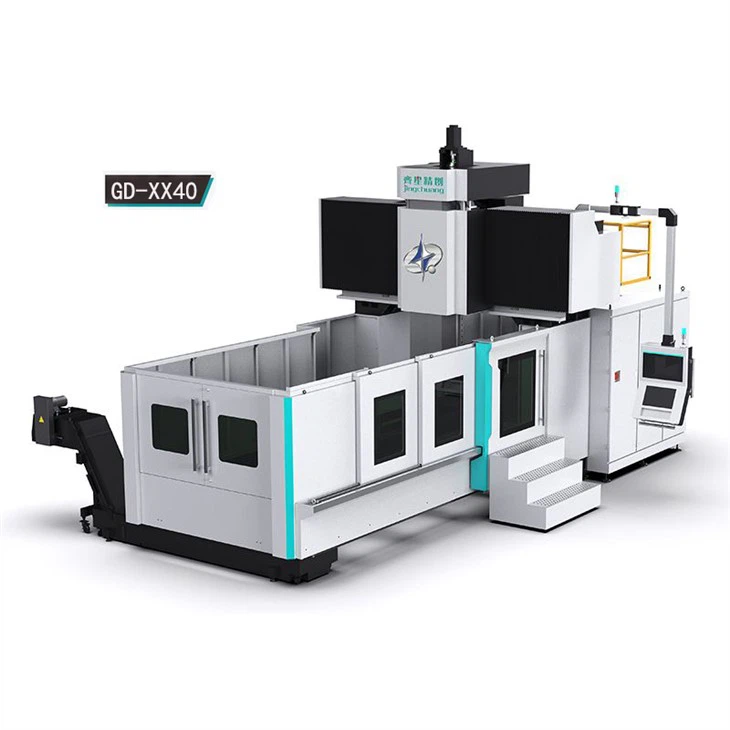

Product Introduction
A 5-axis CNC universal machining center is a CNC machine capable of performing multi-face machining in a single setup. It is suitable for the efficient machining of complex parts such as large molds, engineering machinery parts, and aerospace structural parts.
Technical specification
|
Machine type( 5 axis cnc universal machining center) |
unit |
GD-XX40 series |
|
|
Workbench |
|||
|
Table area |
mm |
5000/6000/8000/10000*3000 |
|
|
T-Slot(size*quantity*spacing) |
mm |
17*28*200 |
|
|
Maximum load of workbench |
kg |
24000/28000/32000/36000 |
|
|
Journey |
|||
|
X-axis travel |
mm |
5100/6100/8100/10100 |
|
|
Y-axis travel |
mm |
4000 |
|
|
Z-axis travel |
Four-wire roller track T-ram square ram(hard rail) |
800/1000/1200/1500 |
|
|
Distance from spindle nose to table( gear type) |
Z-axis travel=800 |
mm |
250-1050 |
|
Z-axis travel=1000 |
mm |
250-1250 |
|
|
Z-axis travel=1200 |
mm |
250-1450 |
|
|
Z-axis travel=1500 square ram(hard rail) |
mm |
250-1750 |
|
|
Double column spacing( door width) |
mm |
4000 |
|
|
Principal axis |
|||
|
Spindle power(Continuous/30min rating) |
Kw |
22/26 30/37 |
|
|
Spindle speed(wire rail spindle head) |
two stage gear type |
rpm |
4500 |
|
Spindle taper hole |
- |
BT-50/BBT-50/CAT-50 |
|
|
Feed |
|||
|
Cutting feed rate |
mm/min |
1-10000/ 1-10000/ 1-8000/ 1-6000 |
|
|
Fast feed rate |
m/min |
X/Y/ Z: 10/15/15 |
|
|
X/Y/Z feed motor |
Power(Kw) |
Kw |
X/Y/Z: 9/7/7 |
|
Precision |
|||
|
Positioning accuracy |
Refer to ISO230-2 |
mm |
±0.013/ Full stroke or ±0.013/ Full stroke or ±0.015/ Full stroke or ±0.015/ Full stroke |
|
Reproduction accuracy |
Refer to ISO230-2 |
mm |
±0.003 |
|
Automatic tool change |
|||
|
Tool storage capacity |
Vertical tool changing |
pcs |
40T/60T/90T/120T |
|
Maximum tool weight |
kg |
20 |
|
|
Automatic tool change tool size(full tool/empty tool) |
mm |
∅125/∅250 |
|
|
Shank type |
- |
BT-50/BBT-50/CAT-50 |
|
|
Other |
|||
|
Electricity demand |
kva |
70/80/80/80 |
|
|
Barometric demand |
kg/cm² |
8 |
|
|
Machine weight |
kg |
65000/75000/87000/97000 |
|
|
Floor area(L*W*H) |
mm |
12800/14800/16800/18800*8800*5200 |
|
features
Robust Structure
The 5-axis CNC universal machining center features a 4000mm wide gate and a solid cast iron frame, providing strong vibration resistance and ensuring stable machining accuracy for large workpieces under heavy cutting conditions.
Large Stroke and High Load Capacity
The maximum table size is 10000×3000mm, with a load capacity of 36000kg, meeting the single-clamp machining requirements of large molds and structural components.
High-Efficiency Machining
X/Y/Z speeds reach 10/15/15 m/min, and the maximum cutting feed is 10000mm/min, effectively shortening the machining cycle time for large parts.
Customizable
Stroke, table size, and enclosure layout can be selected according to factory layout.
Installation and acceptance
1. Delivery location is either a port or factory.
2. The customer must ensure that there is a suitable site, lifting equipment, power supply, gas supply, and the specified cutting fluid and lubricating oil required for the machine.
3. This machine requires a foundation. The customer should prepare the foundation according to the foundation drawings provided by our company before machine delivery.
1. The customer may inspect the machine at the manufacturing plant; all related costs shall be borne by the buyer.
2. The machine's operating status shall be inspected according to the manufacturing plant's standard testing or other testing methods agreed upon by both parties.
3. The machine's accuracy shall be accepted based on the factory accuracy certificate provided by our company or the results of random sampling inspections agreed upon by both parties.
Why We Are the Leading Manufacturer of 5 Axis CNC Universal Machining Center
Wide Product Range
The company offers a diverse range of machining centers, including vertical, gantry, and 5-axis models, to meet various processing needs.
Extensive Industry Applications
The company's products are applicable to multiple industries, including automotive, aerospace, electronics, medical, energy, and heavy industry.
Comprehensive After-Sales Service
The company provides installation guidance, operation training, and maintenance services, ensuring worry-free use for customers.
Authoritative International Certifications
The company has obtained ISO9001, ISO14001, and ISO45001 certifications, ensuring product quality and safety.
Frequently Asked Questions
Q: What workpieces is the equipment suitable for?
A: The equipment is suitable for large molds, engineering machinery parts, rail transit components, and aerospace structural parts, especially large parts exceeding 5 meters in length.
Q: What are the characteristics of the spindle?
A: The spindle power is up to 30/37kW, employing a two-stage gear structure to provide stable torque, suitable for heavy cutting and continuous machining.
Q: What are the foundation requirements for installation?
A: The equipment requires a concrete foundation. Users need to construct the foundation in advance according to the foundation drawings provided by the manufacturer and reserve power and air supply.
Q: What materials can the 5-axis CNC universal machining center machine?
A: It can machine steel, cast iron, mold steel, stainless steel, and aluminum alloys.
Q: Is the equipment operation complex?
A: No. The system interface is user-friendly and supports mainstream systems such as FANUC and Siemens. Operators can quickly master the basic processes.
Q: Does it support customization?
A: Yes. The stroke, spindle, tool magazine, system, and worktable can be customized.
