Product Introduction
A CNC machining center is a high-precision automated machining equipment suitable for milling, drilling, boring, and cutting large parts. It is widely used in the automotive, aerospace, mold, and heavy machinery manufacturing industries.
Technical specification
|
Machine type( cnc gantry machining center) |
unit |
GD-XX50 series |
|
|
Workbench |
|||
|
Table area |
mm |
6000/8000/10000*4000 |
|
|
T-Slot(size*quantity*spacing) |
mm |
19*28*200 |
|
|
Maximum load of workbench |
kg |
30000/33000/36000 |
|
|
Journey |
|||
|
X-axis travel |
mm |
6100/8100/10100 |
|
|
Y-axis travel |
mm |
5000 |
|
|
Z-axis travel |
Four-wire roller track T-ram square ram(hard rail) |
800/1000/1200/1500 |
|
|
Distance from spindle nose to table( gear type) |
Z-axis travel=800 |
mm |
250-1050 |
|
Z-axis travel=1000 |
mm |
250-1250 |
|
|
Z-axis travel=1200 |
mm |
250-1450 |
|
|
Z-axis travel=1500 square ram(hard rail) |
mm |
250-1750 |
|
|
Double column spacing( door width) |
mm |
5000 |
|
|
Principal axis |
|||
|
Spindle power(Continuous/30min rating) |
Kw |
22/26 30/37 |
|
|
Spindle speed(wire rail spindle head) |
two stage gear type |
rpm |
4500 |
|
Spindle taper hole |
- |
BT-50/BBT-50/CAT-50 |
|
|
Feed |
|||
|
Cutting feed rate |
mm/min |
1-10000/ 1-8000/ 1-6000 |
|
|
Fast feed rate |
m/min |
X/Y/ Z: 10/15/15 |
|
|
X/Y/Z feed motor |
Power(Kw) |
Kw |
X/Y/Z: 9/7/7 |
|
Precision |
|||
|
Positioning accuracy |
Refer to ISO230-2 |
mm |
±0.013/ Full stroke or ±0.015/ Full stroke or ±0.015/ Full stroke |
|
Reproduction accuracy |
Refer to ISO230-2 |
mm |
±0.003 |
|
Automatic tool change |
|||
|
Tool storage capacity |
Vertical tool changing |
pcs |
40T/60T/90T/120T |
|
Maximum tool weight |
kg |
20 |
|
|
Automatic tool change tool size(full tool/empty tool) |
mm |
∅125/∅250 |
|
|
Shank type |
- |
BT-50/BBT-50/CAT-50 |
|
|
Other |
|||
|
Electricity demand |
kva |
80 |
|
|
Barometric demand |
kg/cm² |
8 |
|
|
Machine weight |
kg |
82000/92000/102000 |
|
|
Floor area(L*W*H) |
mm |
14800/16800/18800*10200*5200 |
|
Robust Chassis: The CNC gantry machining center features a high-strength steel welded chassis with a maximum load capacity of 36 tons, ensuring long-term machining stability.
Power System: The spindle power is 22-30kW, with a speed of 4500rpm, equipped with a servo drive and cooling system, maintaining stable performance for over 500 hours of continuous machining.
Automated Control: Supports multi-axis CNC programming and vertical automatic tool change (40-120T), improving machining efficiency.

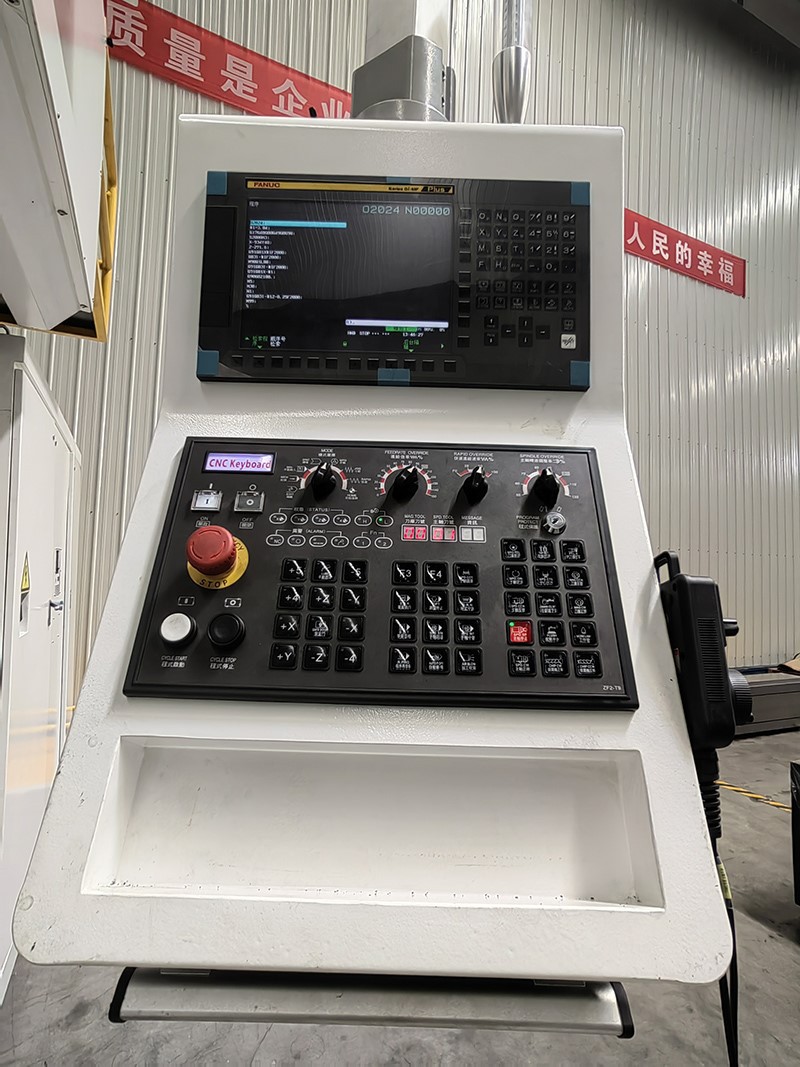

Customizable: The worktable (6000-10000×4000mm) is customizable; the control panel layout and machine body color are designed according to factory and process requirements.
